Suzuki Rigging Guide
Suzuki Rigging Kit “A”

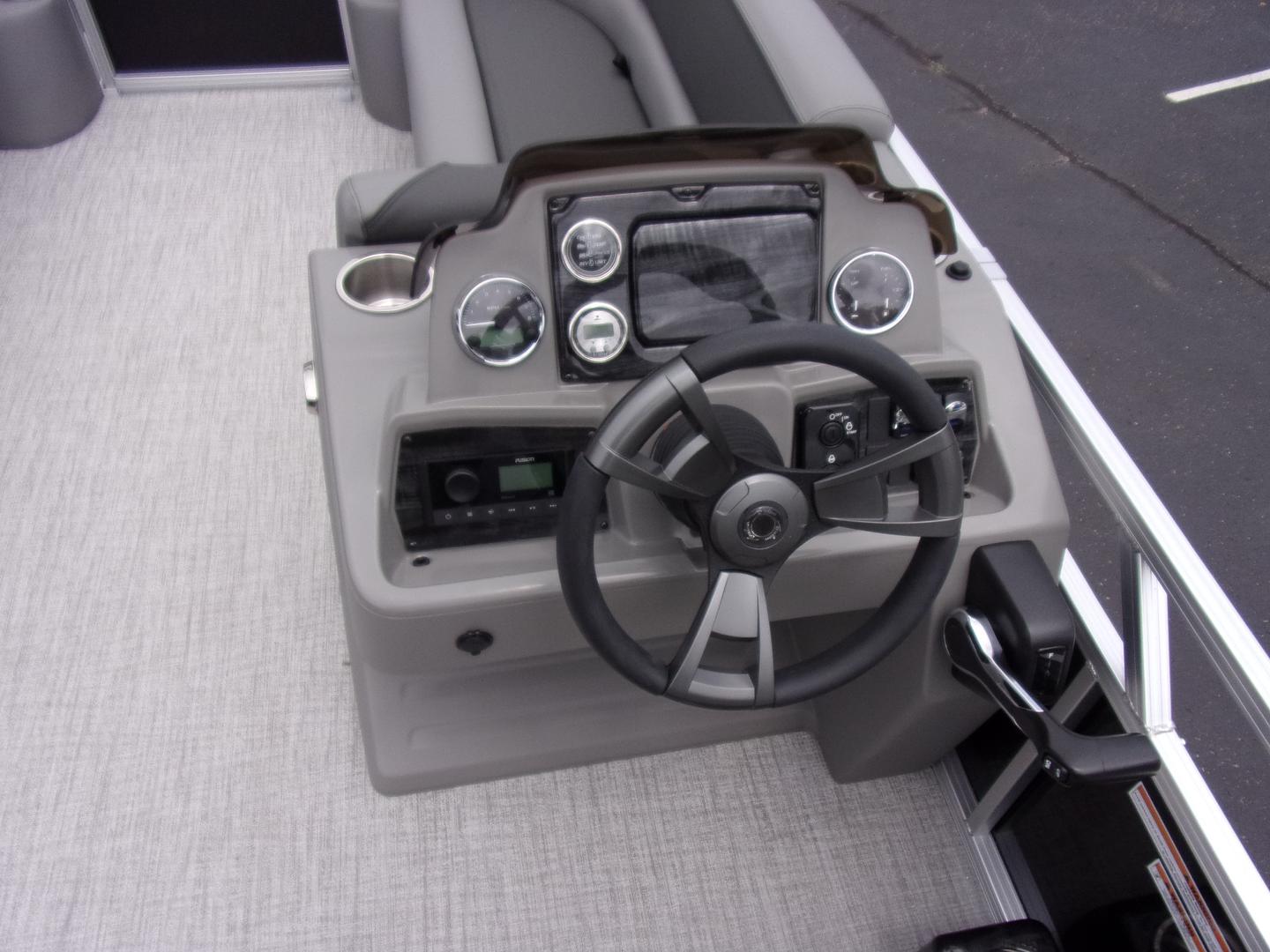

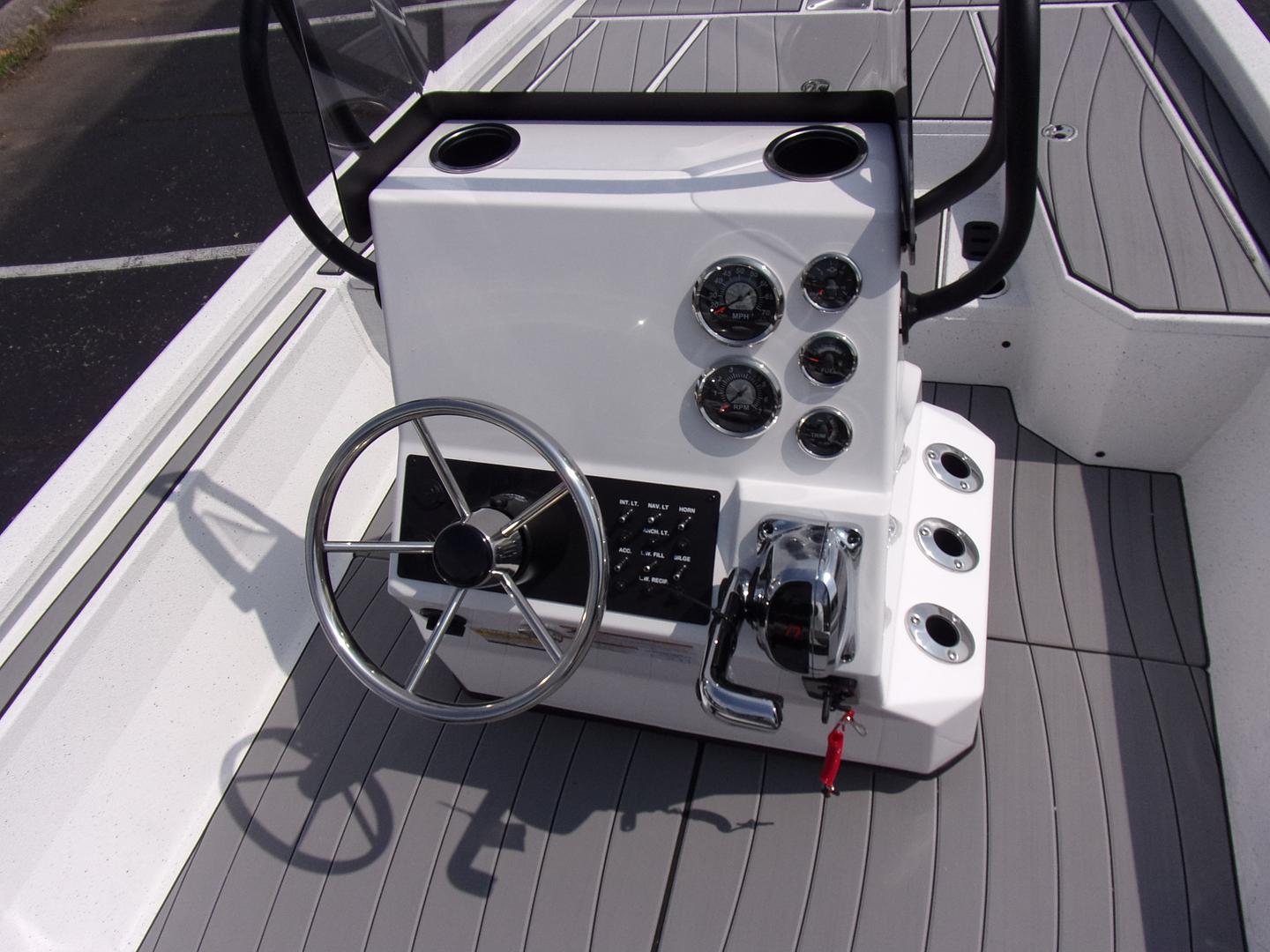

If your console/cockpit looks like this.
With your control box on the top of the console, you will need a Suzuki Rigging Kit “A”
Binnacle style controls are the most common in center console boats and some pontoon boats.

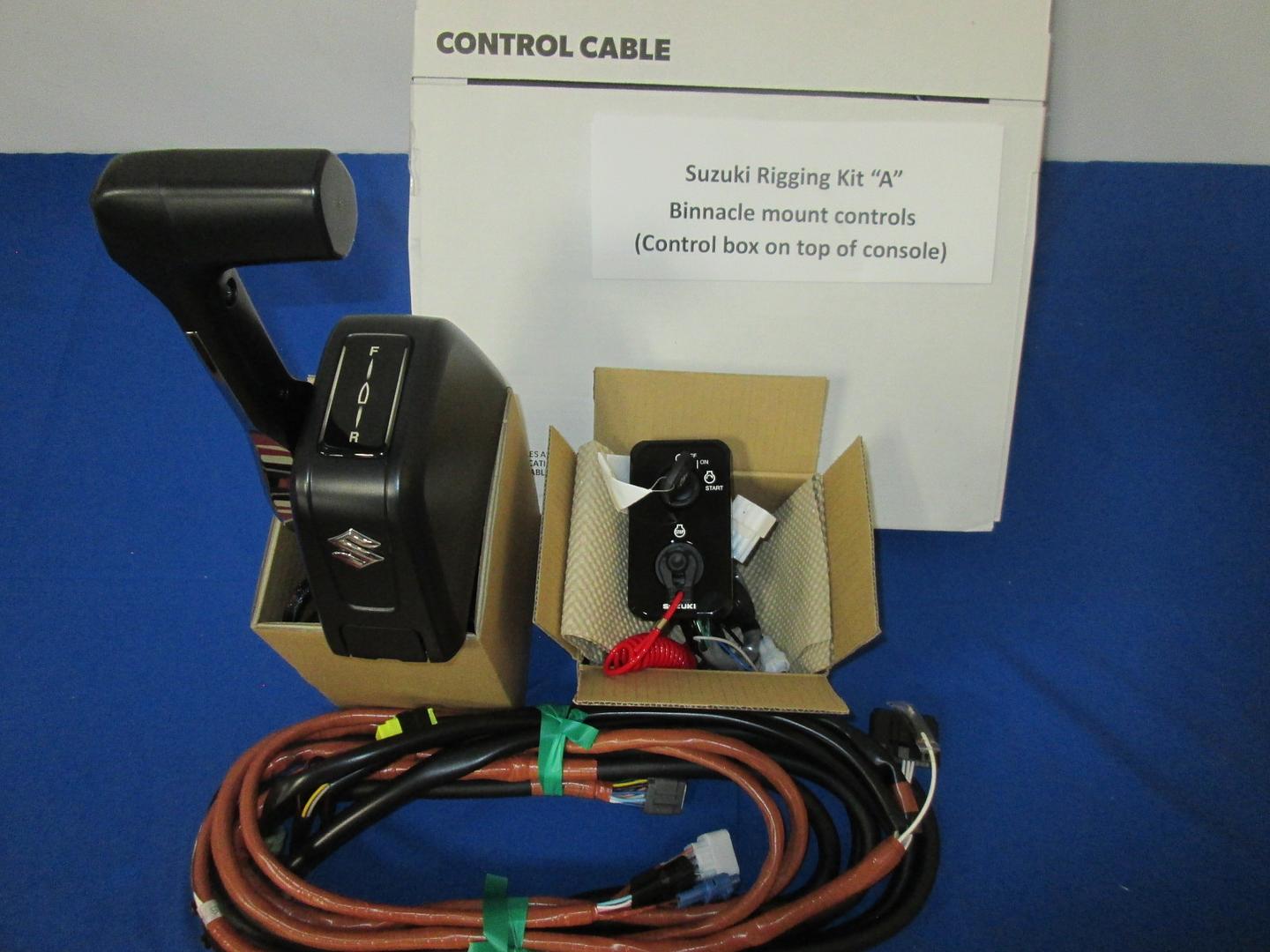

Suzuki rigging kit “A” includes the following:
Suzuki single binnacle control box (for mechanical engine)
Suzuki 16’ OR 21’ main wiring harness
Suzuki single engine ignition and emergency stop switch panel assembly (vertical orientation)
2 shift and throttle cables (length TBD)
NOTE: Gauges not included. Propellor not included.
$1,095 + tax
Suzuki Rigging Kit “B”

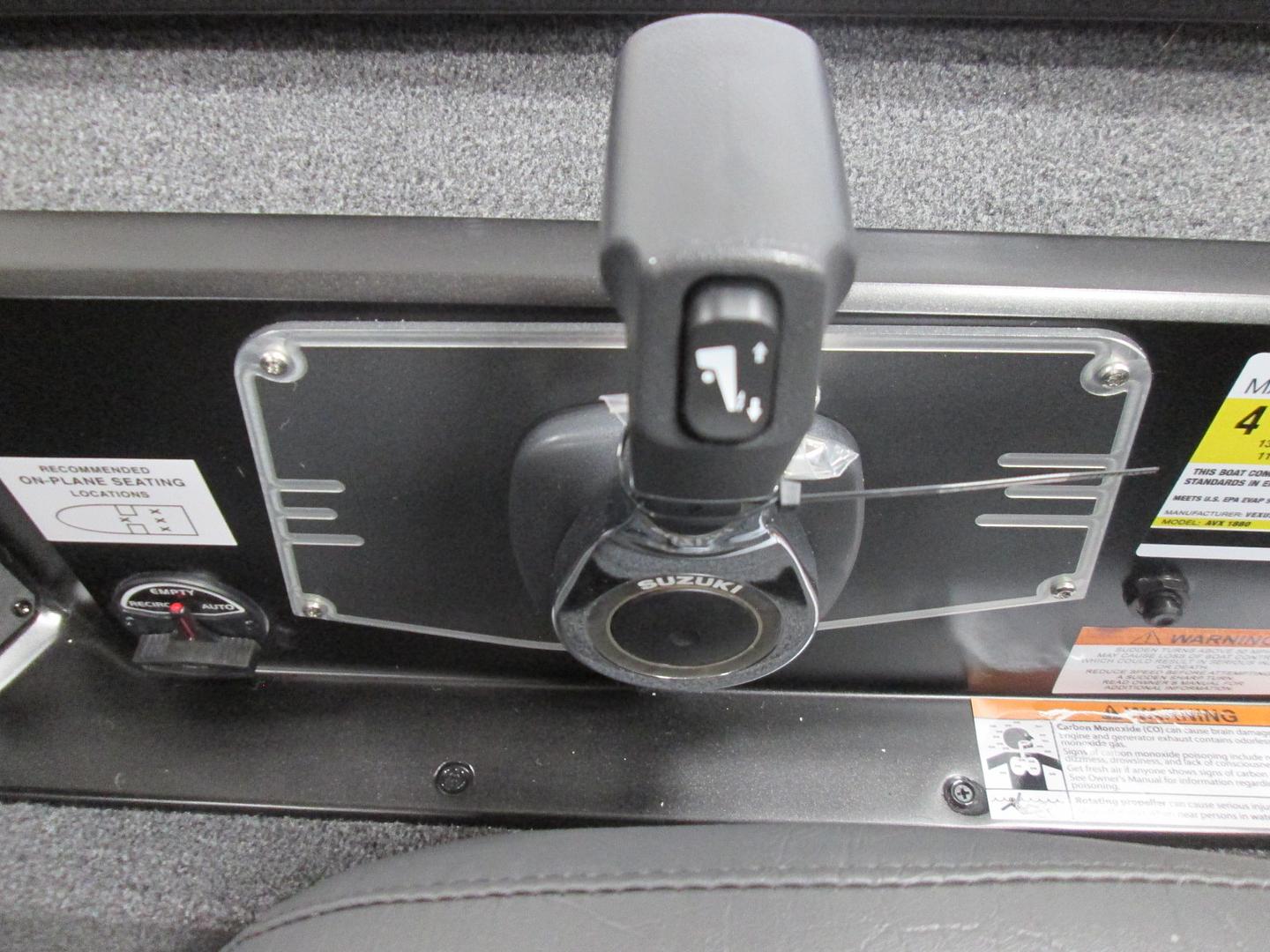

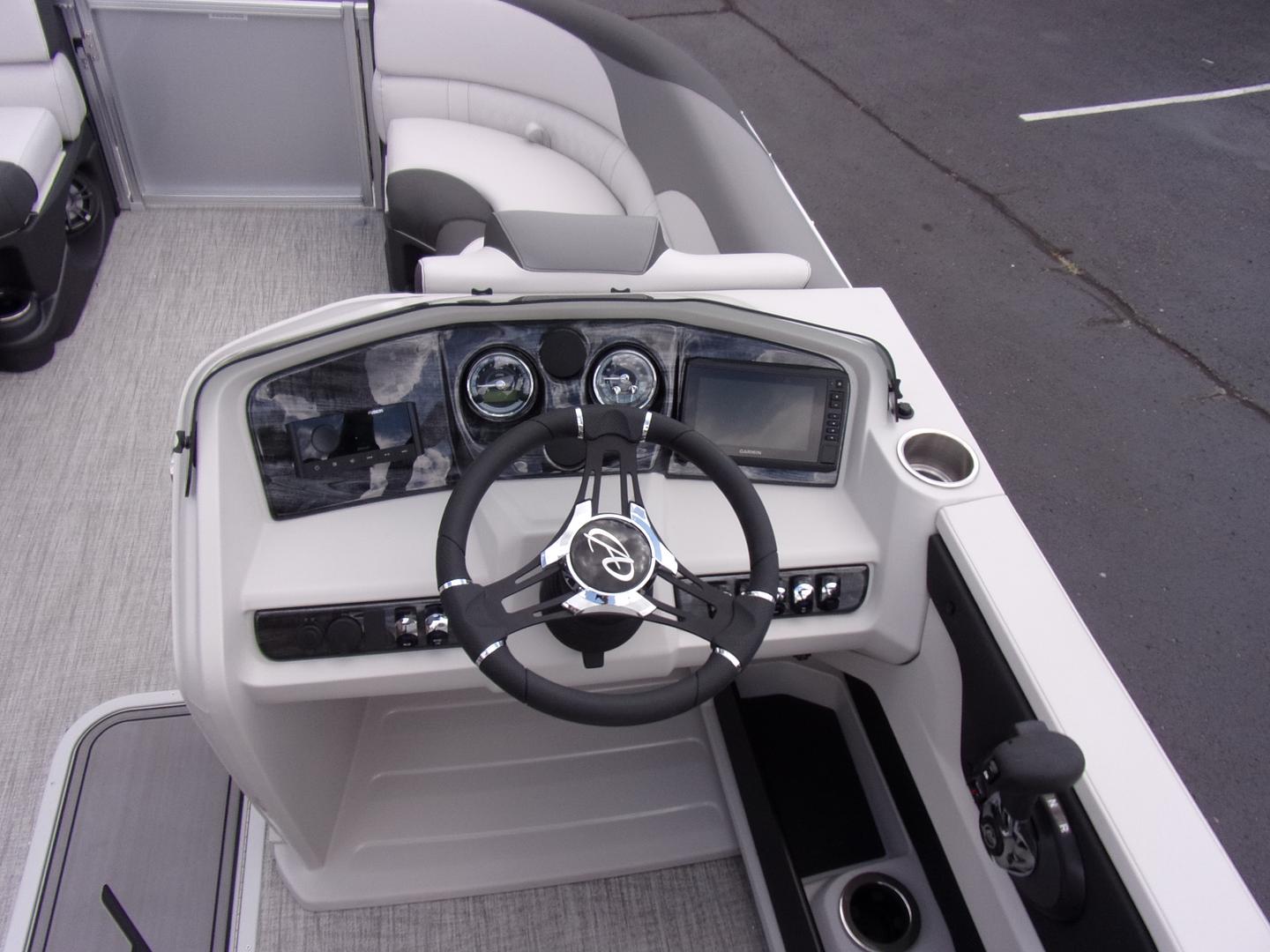

If your console/cockpit looks like this.
With your control box flush mounted or concealed behind the side panel of the boat, you will need a Suzuki rigging kit “B”
Flush mount or concealed mount controls are most common in fiberglass fishing boats, newer model aluminum boats and some pontoons.

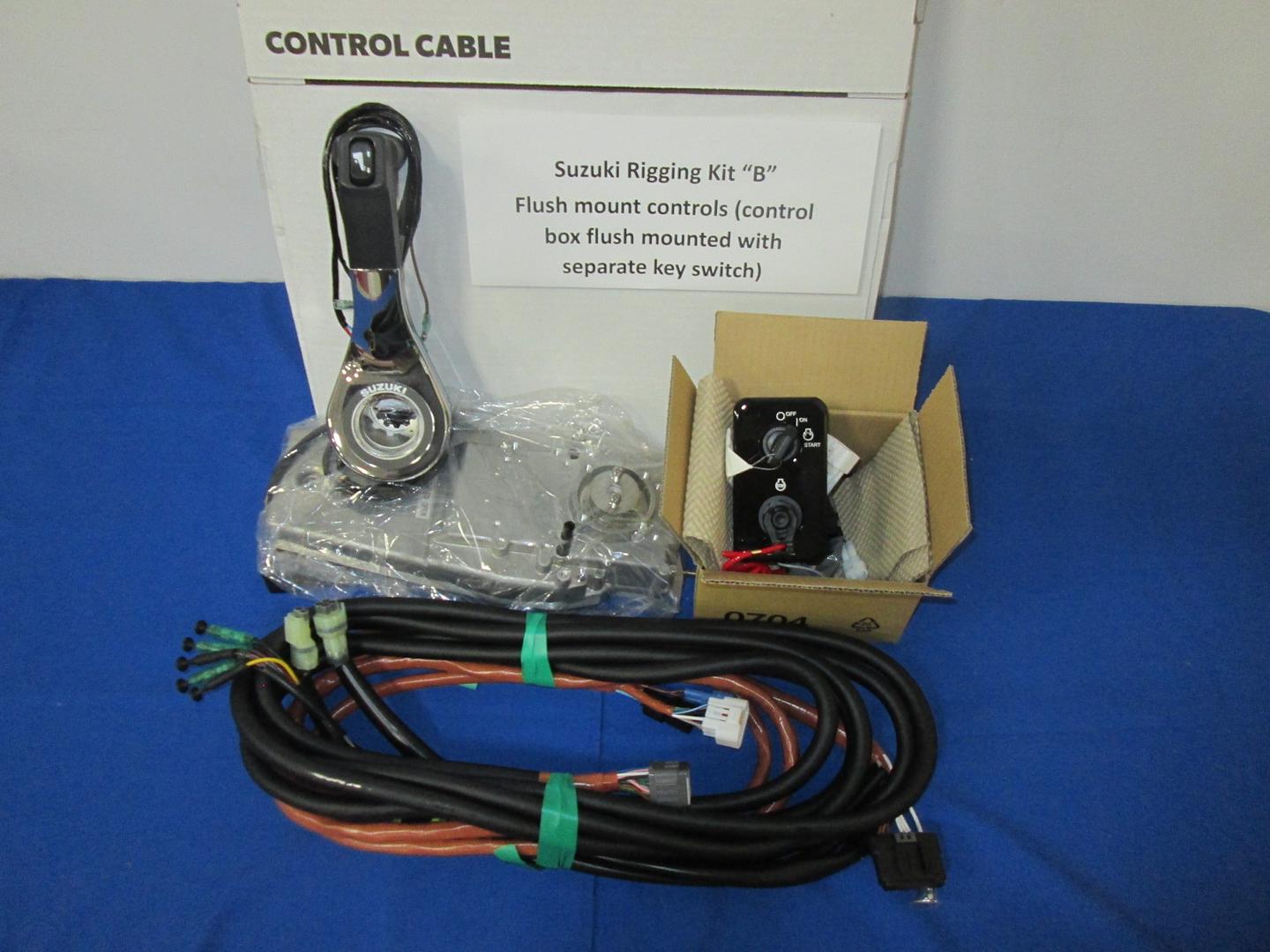

Suzuki rigging Kit “B” Includes the following:
Suzuki flush mount control box (for mechanical engine)
Suzuki 16’ OR 21’ main wiring harness
Suzuki single engine ignition and emergency stop switch panel assembly (vertical orientation)
2 shift and throttle cables (length T.B.D.)
NOTE: Gauges not included. Propellor not included.
$1,095 + tax
Suzuki Rigging Kit “C”

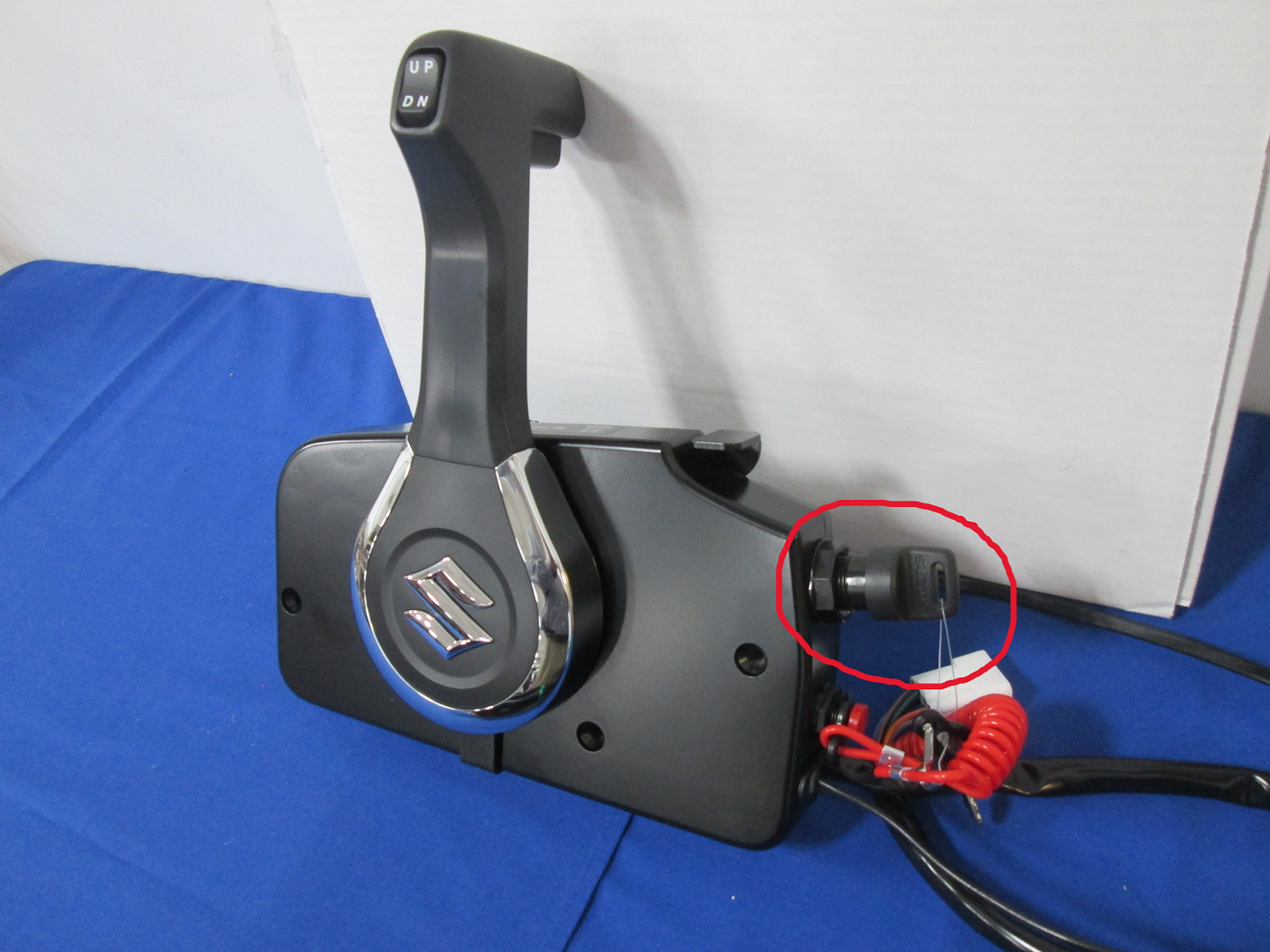

If your boat has side mount controls with a built-in key switch on the control box, you will need a Suzuki rigging Kit “C”
Side mount controls with a built-in key switch are most common on aluminum boats and vintage/older boats.
Suzuki rigging kit “C” includes the following:
Suzuki side mount control box with built-in key switch and emergency stop switch (for mechanical engine)
Suzuki 16’ OR 21’ main wiring harness
2 shift and throttle cables (length TBD)
NOTE: Gauges not included. Propellor not included.
$1,075 + tax
